固体矿产资源储量半自动化估算方法

doi:10.11872/j.issn.1005-2518.2021.05.030

摘要/Abstract

摘要：

三维矿业软件主要通过人机交互的操作方式进行资源储量估算工作，存在操作步骤繁多、易出差错和估算时间长等缺点。在结合Surpac三维矿业软件编制资源量估算报告的基础上，提出了利用Surpac软件二次开发技术编制功能，建立了固体矿产资源储量半自动化估算方法。通过设计符合《固体矿产资源储量估算规程》要求的三维矿体资源储量估算技术流程，利用Surpac软件二次开发的TCL/SCL脚本技术，在Surpac软件基础上开发系列功能执行流程操作。研究表明：除了剖面解译、实体建模和变异函数需要人机交互外，其他所有操作均可利用开发的功能进行自动化处理，使资源储量估算工作整体上达到半自动化程度。将本文提出的方法应用于内蒙古自治区阿鲁科尔沁旗巴彦包勒格银多金属矿资源量估算过程中，并采用地质块段法对该矿床1号银矿体资源量进行估算验证，结果表明2种方法所得估算结果的相对偏差均在合理范围内。由此说明，本文提出的储量半自动化估算方法可靠可行，能够显著提高资源储量估算工作效率，创造了良好的经济效益。

关键词: 固体矿产资源储量估算, Surpac软件, 二次开发, 半自动化估算方法, 银多金属矿, 内蒙古

Abstract:

With the popularization and application of Surpac and other 3D mining software，more and more exploration projects use 3D mining software to prepare the estimation reports of solid mineral resources. Although the solid mineral resource estimation report compiled with 3D mining software is much faster than the traditional 2D method of resource reserve estimation to some extent，it also faces the problem of manual operation steps，inconsistent estimation process，and difficult matching between estimation results and specification requirements. In order to improve the calculation efficiency and make the results meet the specification requirements，a semi-automatic method for solid mineral resource estimation has been developed in compliance with “Regulations of Solid Mineral Resources Estimation”. The development of this semi-automatic resource estimation method has been based on the secondary development technology which is provided by Surpac software. This new method has been developed by summarizing，from various geological exploration projects，the layouts of different types of exploration test locations as well as the characteristics and spatial distribution of the orebody. From this work，a set of instance data that can cover various exploration situations was then prepared as the objects of research. This new method is combined with the characteristics of the Resource Estimation Report prepared by Surpac 3D mining software，it has developed a technical process of mineral resource estimation using 3D mining software and in accordance with the specification requirements. Through computer programming，most of the operations in the process can be implemented by the developed program. Except for cross section interpretation and solid modeling which still needs manual operation，all of the other steps including entry of raw data，establishment of geological database，statistics of mineral grade，process of especially high mineral grade，estimation and validation of the block models，mineral resource estimation reporting，generating drawings and so on can be carried out using the automatic procedures. Therefore，the overall work for estimation of solid mineral resources has reached a degree of semi-automation.The three-dimensional resource and reserve estimation of Bayan Baolege silver-polymetallic ore in Alu Kerqinqi of Inner Mongolia Autonomous Region is completed by the semi-automatic method.Dozens of silver and zinc orebodies are interpreted，the statistical summary of geological characteristics，resource estimation report and drawings of all mineral bodies are automatically completed，and the drawing of 36 geological section profiles，10 horizontal section drawings and 12 vertical longitudinal projection drawings in the mining area are completed automatically within 1/2 days. The geological block method is used to caculate and verify the No.1 main orebody. The relative deviation of the estimation results of the two methods is within a reasonable range. The estimation results show that the results are reliable and meet the specification requirements.The estimation time is greatly reduced，significantly improving the estimation work efficiency and creating good economic benefits.

Key words: estimation of solid mineral resources reserves, Surpac software, secondary development, semi-automatic estimation method, silver polymetallic ore, Inner Mongolia

中图分类号:

P624.7

李海泉. 固体矿产资源储量半自动化估算方法[J]. 黄金科学技术, 2021, 29(5): 647-657.

Haiquan LI. A Semi-automatic Method for Estimation of Solid Mineral Resources Reserves[J]. Gold Science and Technology, 2021, 29(5): 647-657.

图/表 15

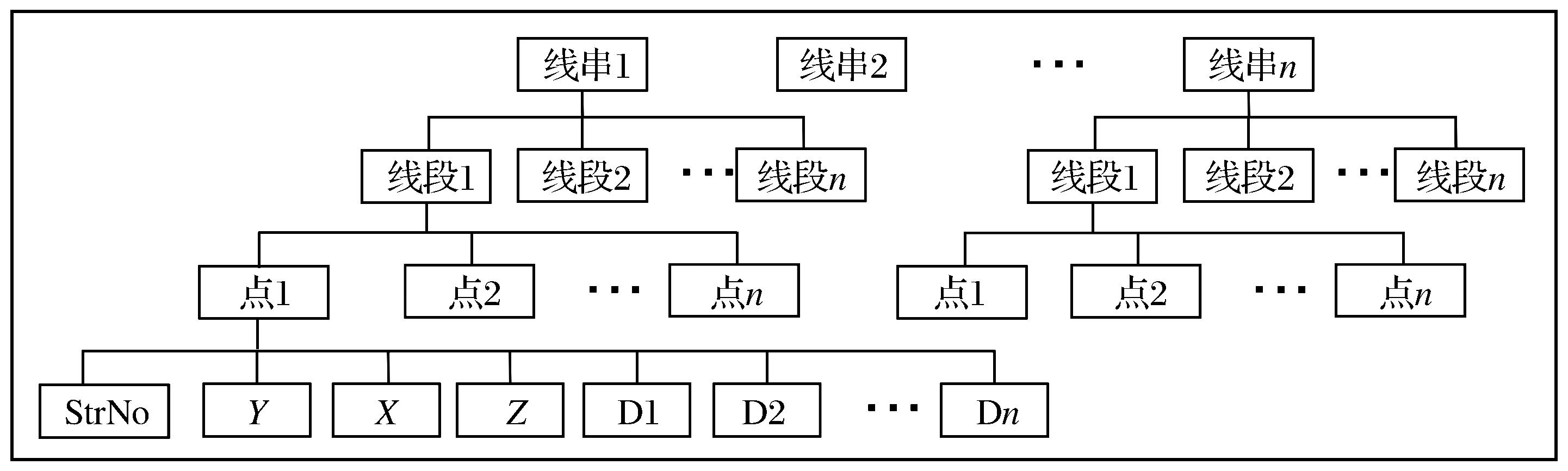

图1

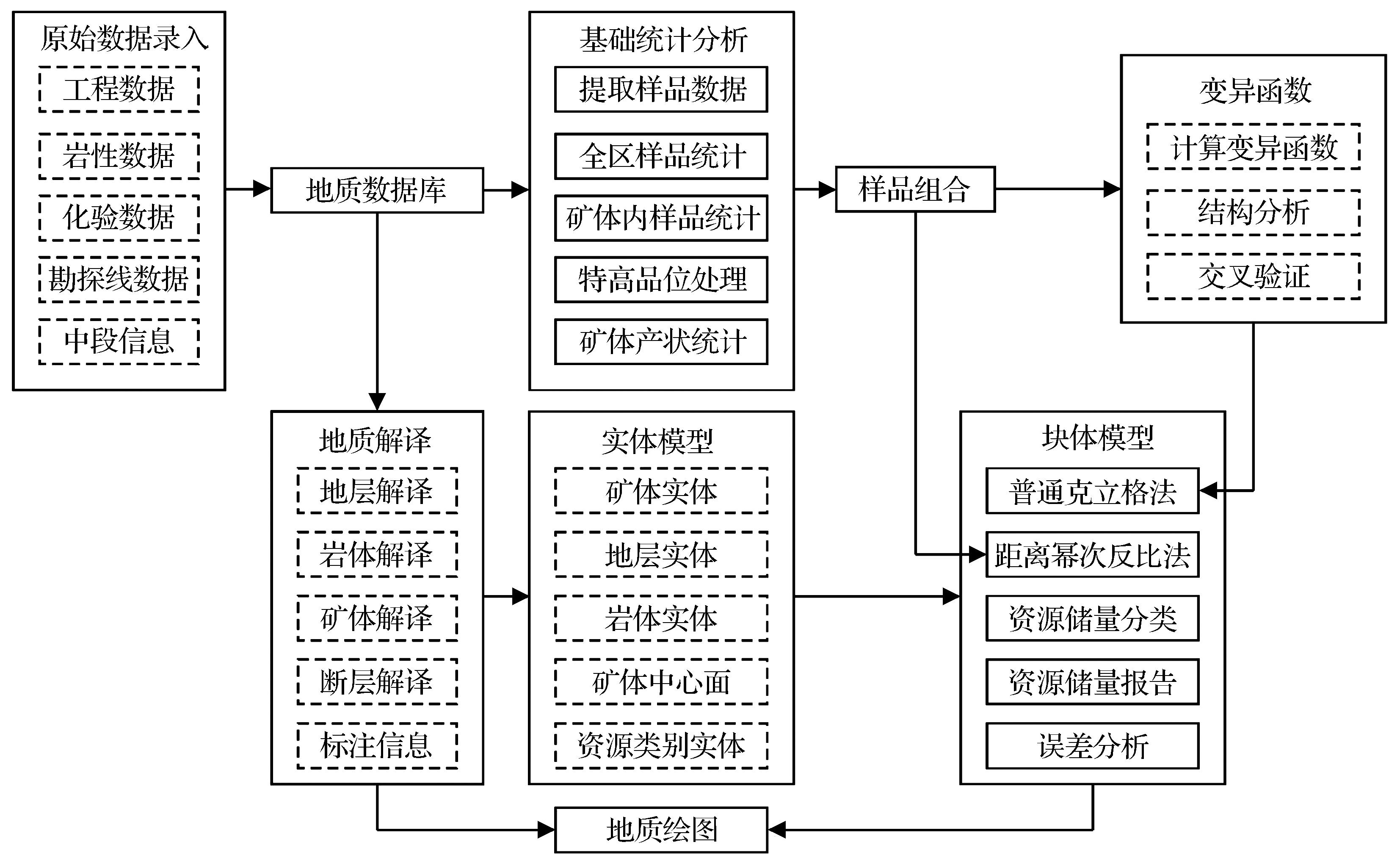

图2

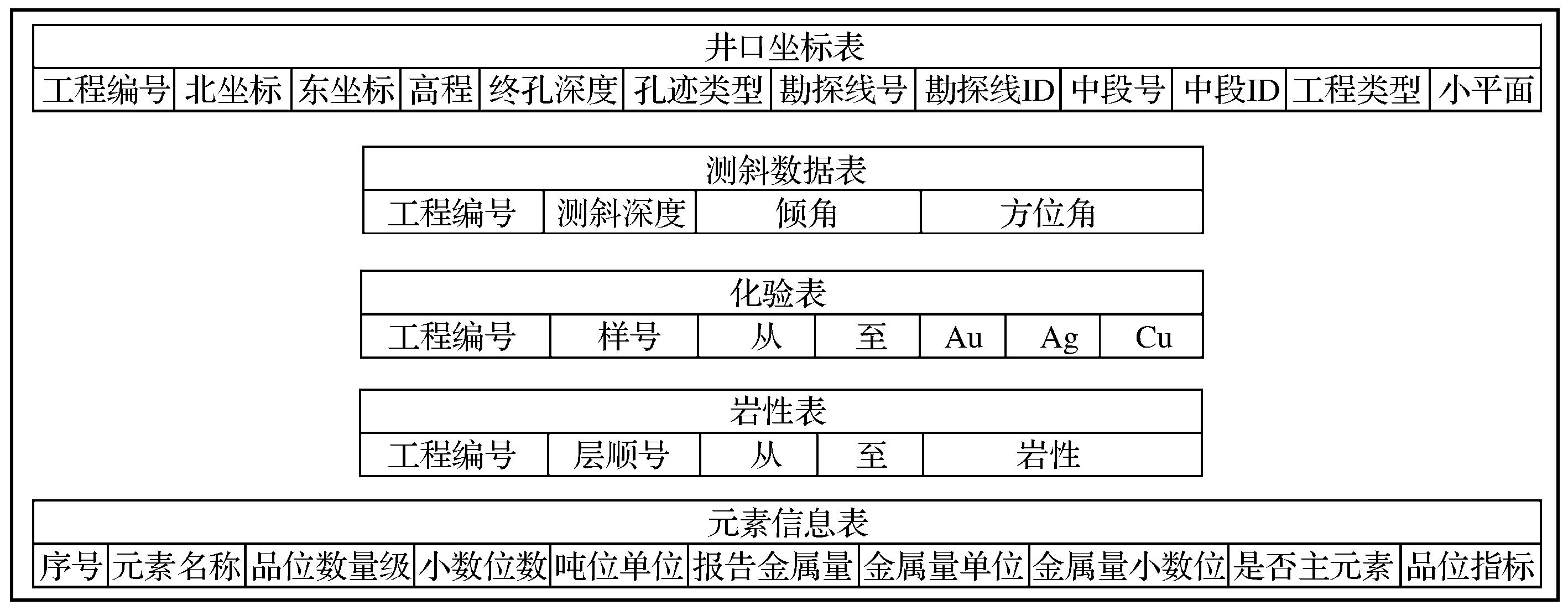

图3

表1

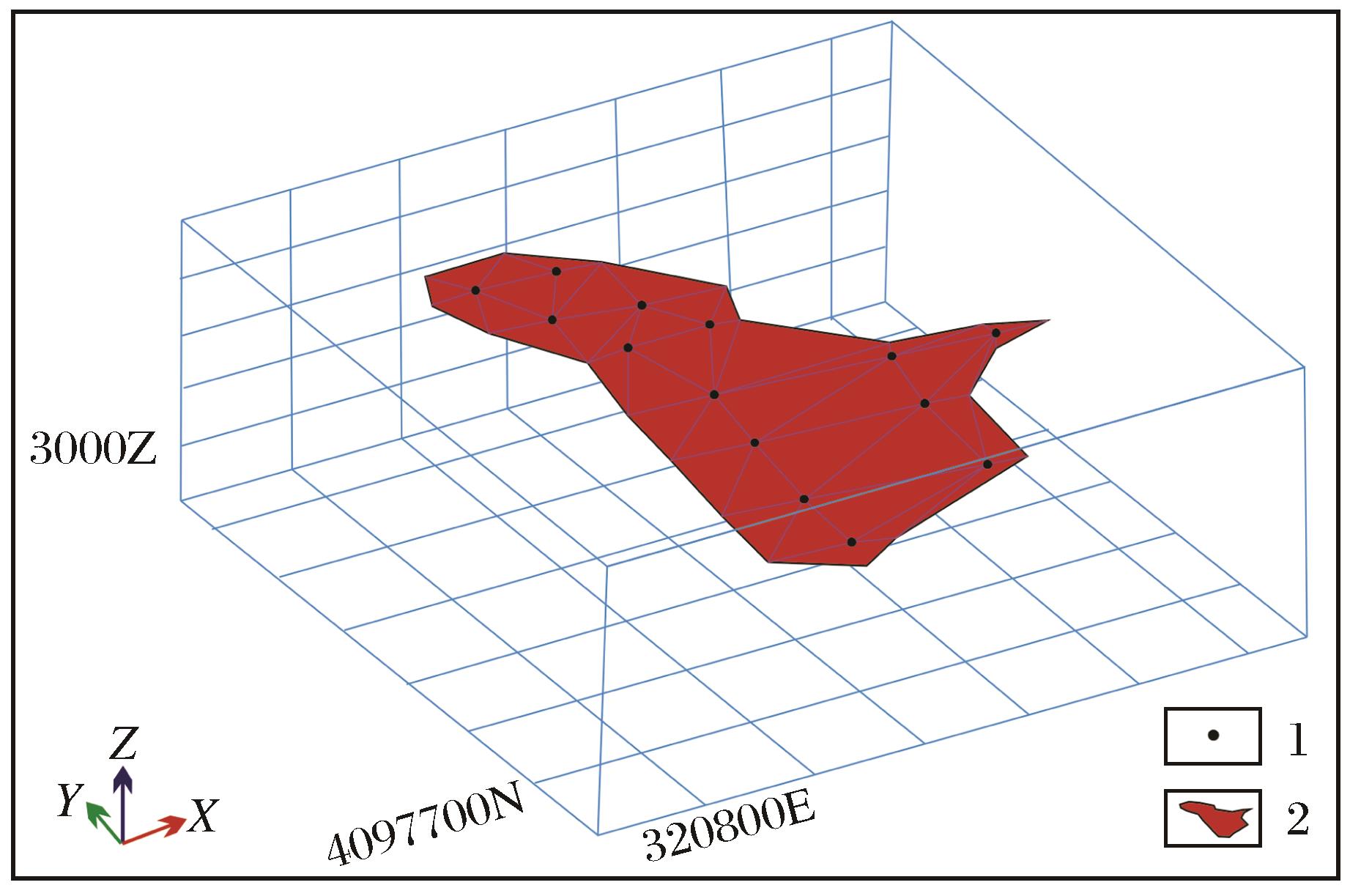

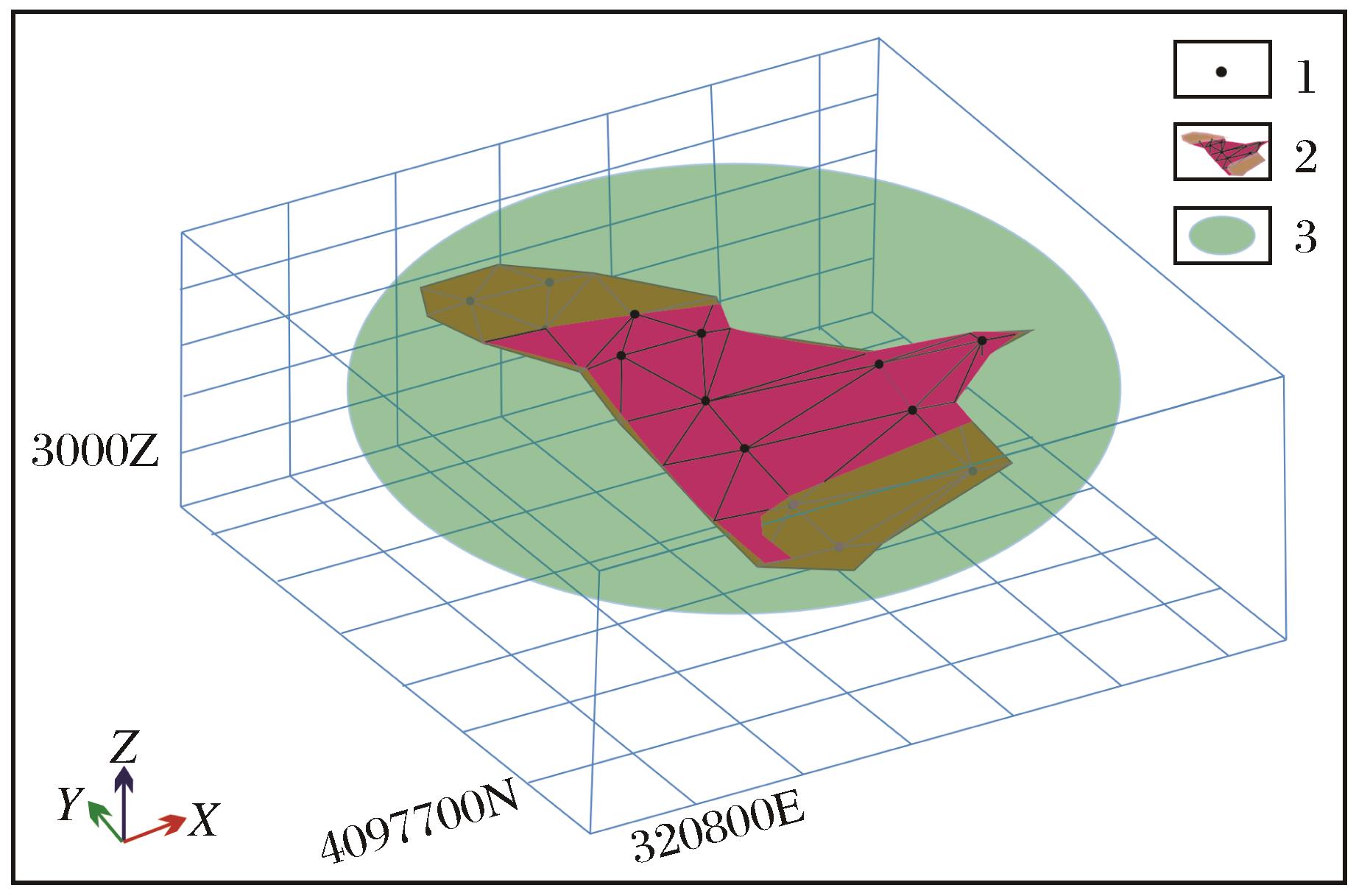

图4

图5

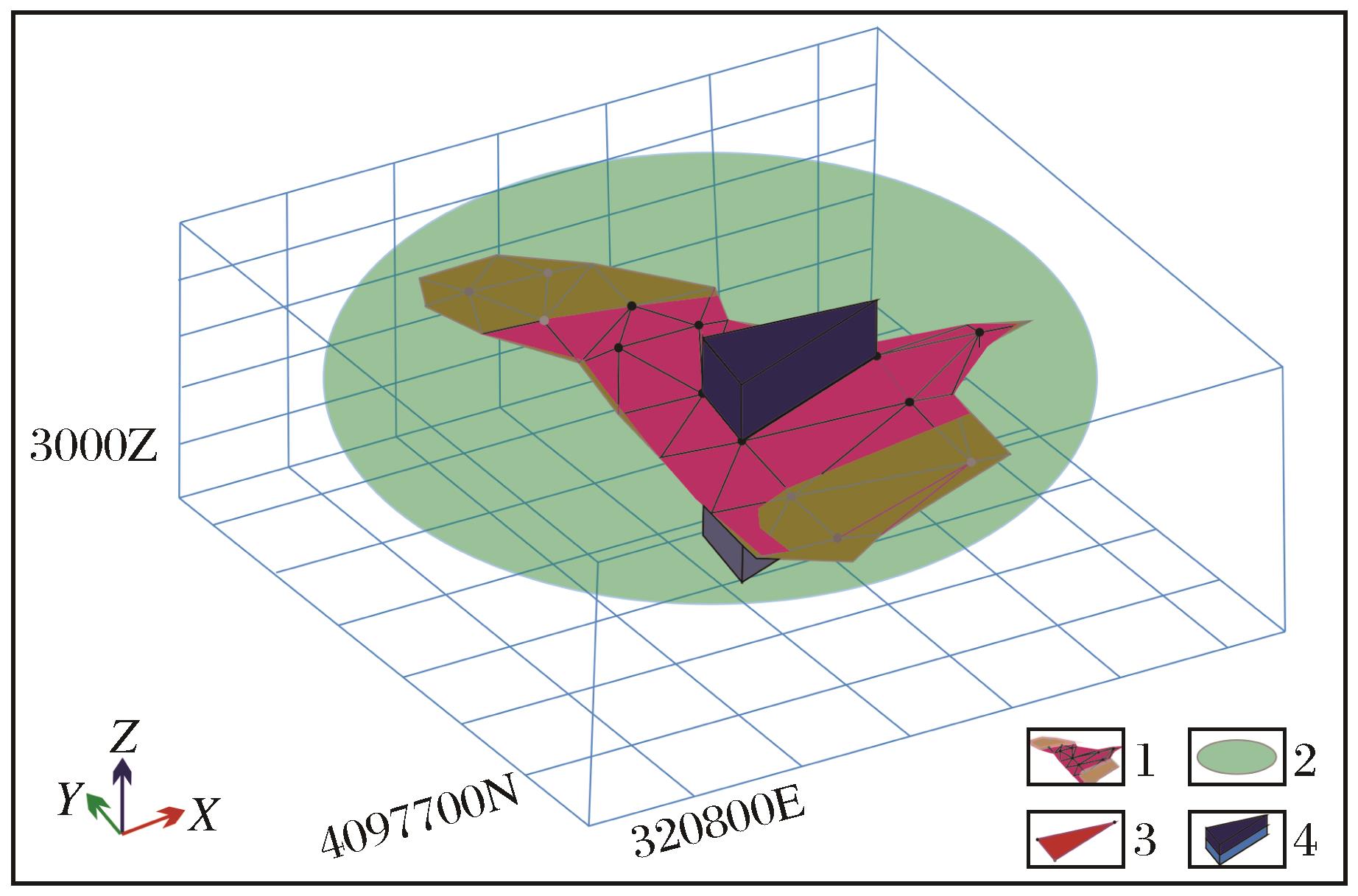

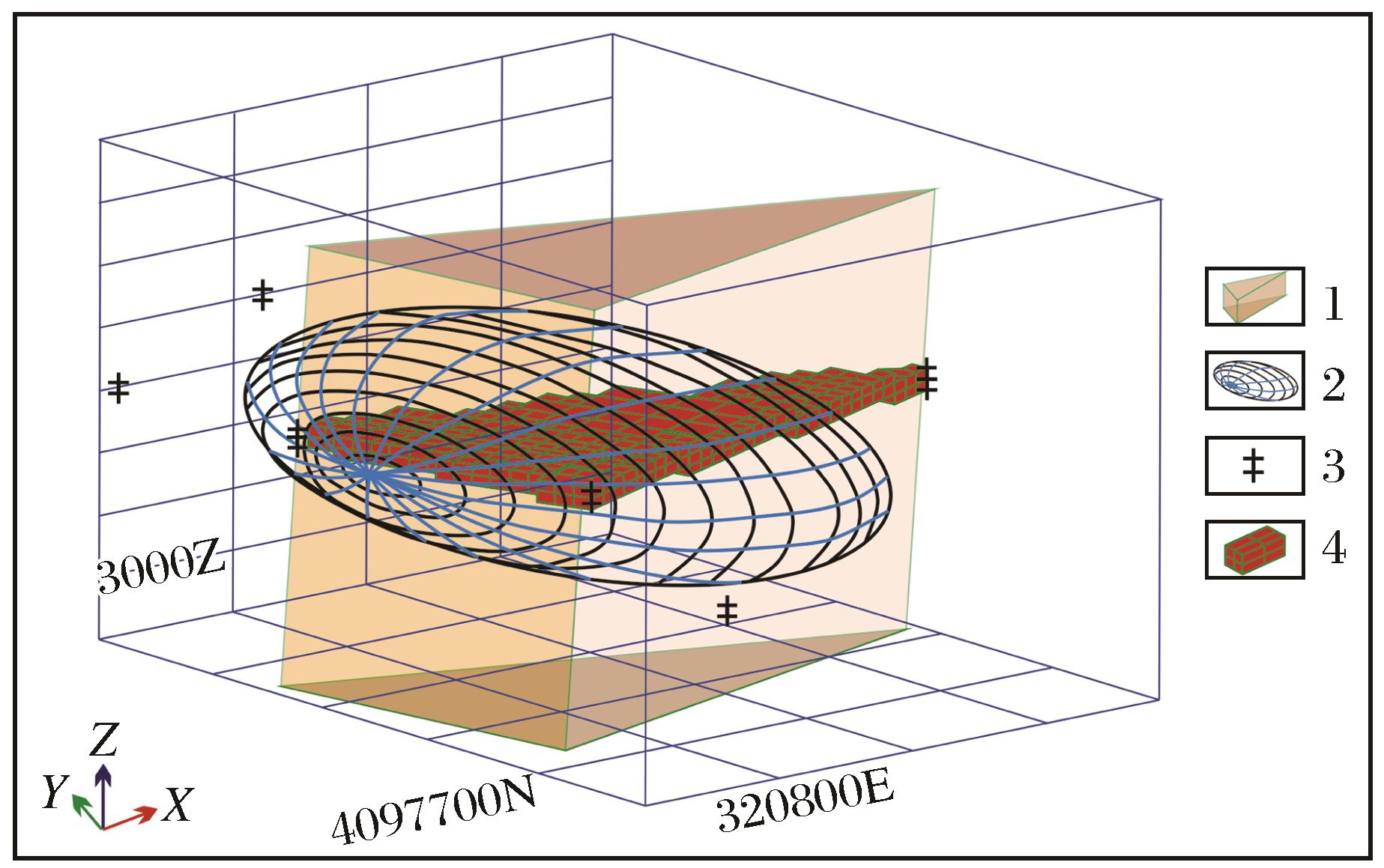

图6

图7

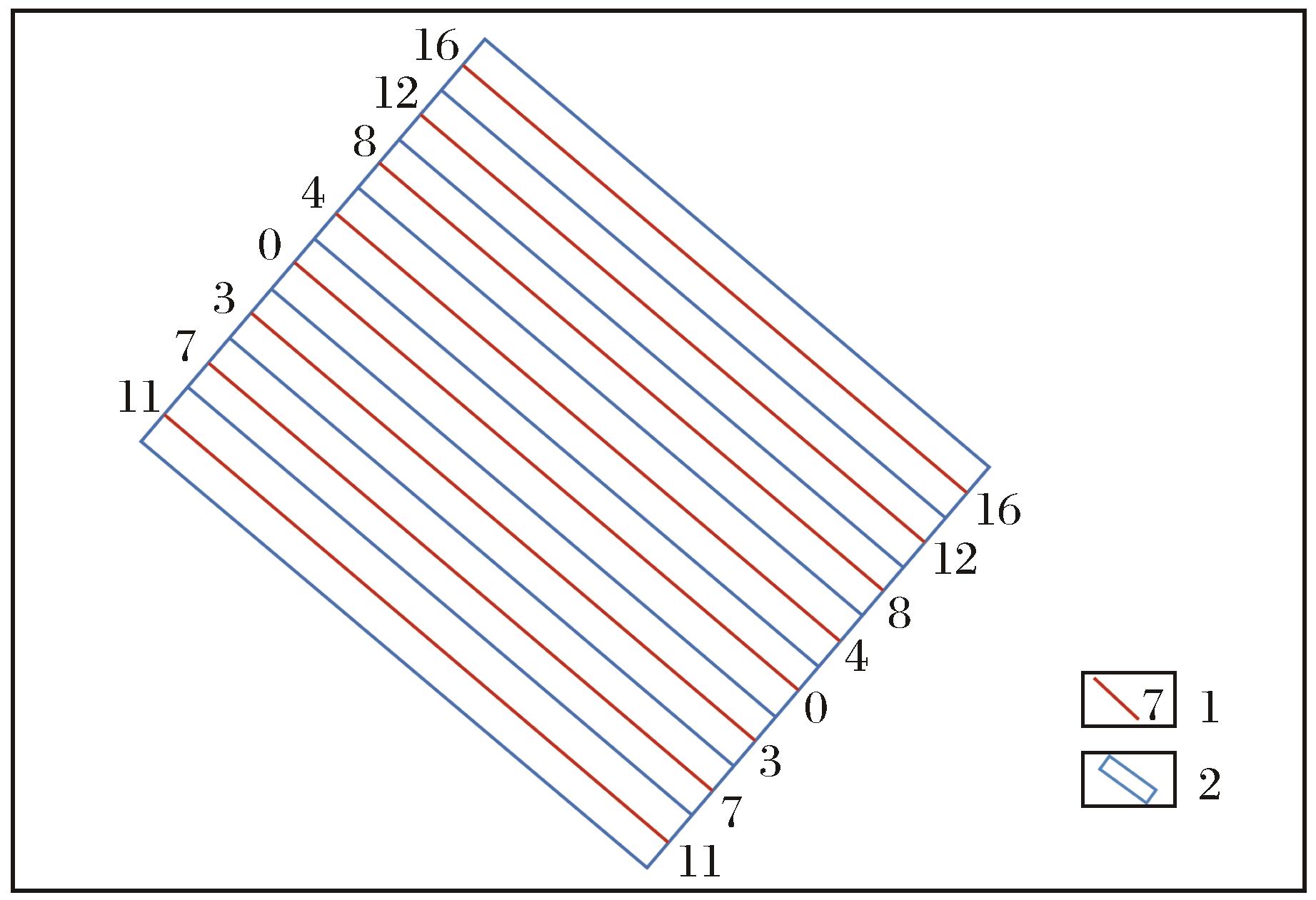

图8

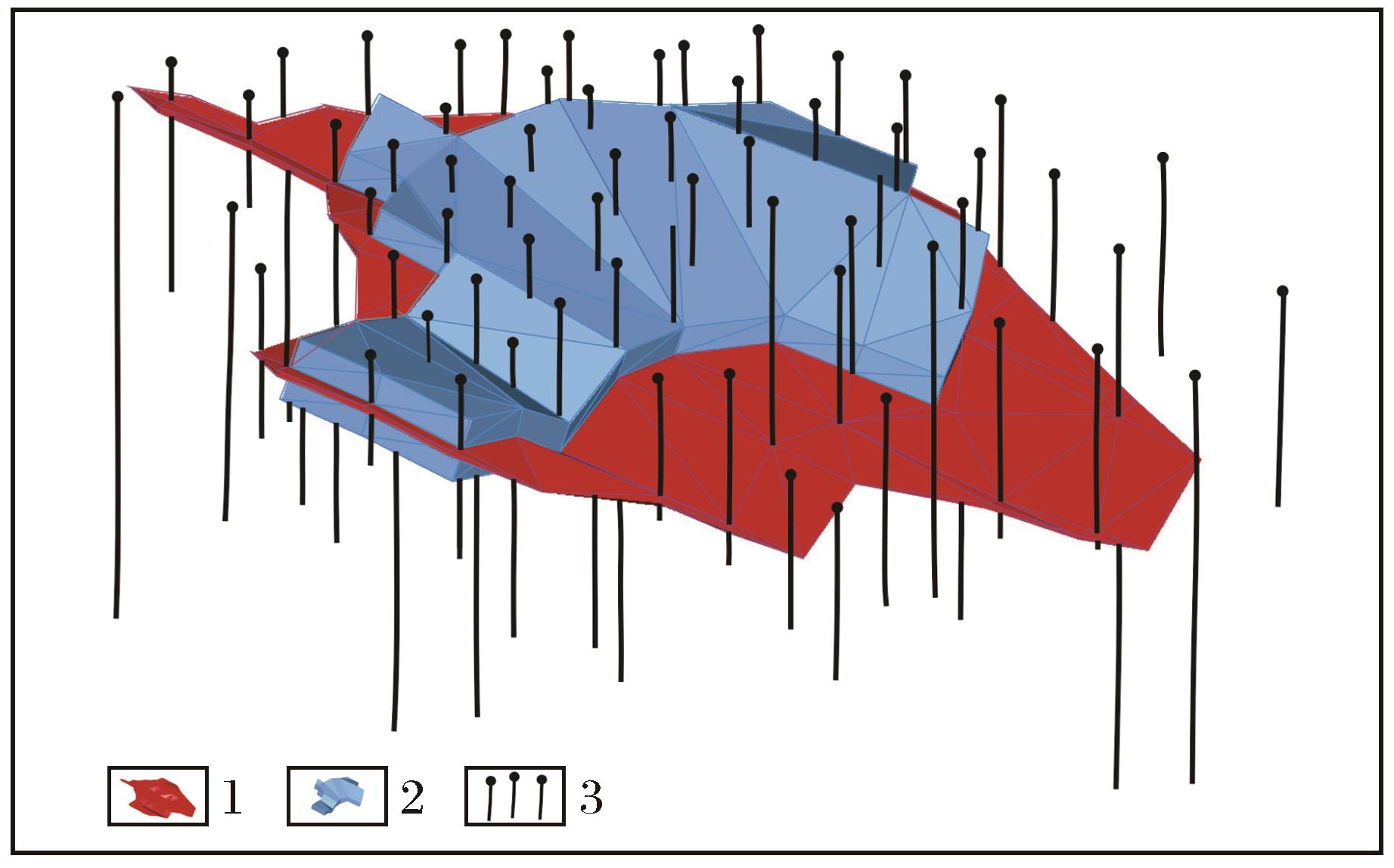

图9

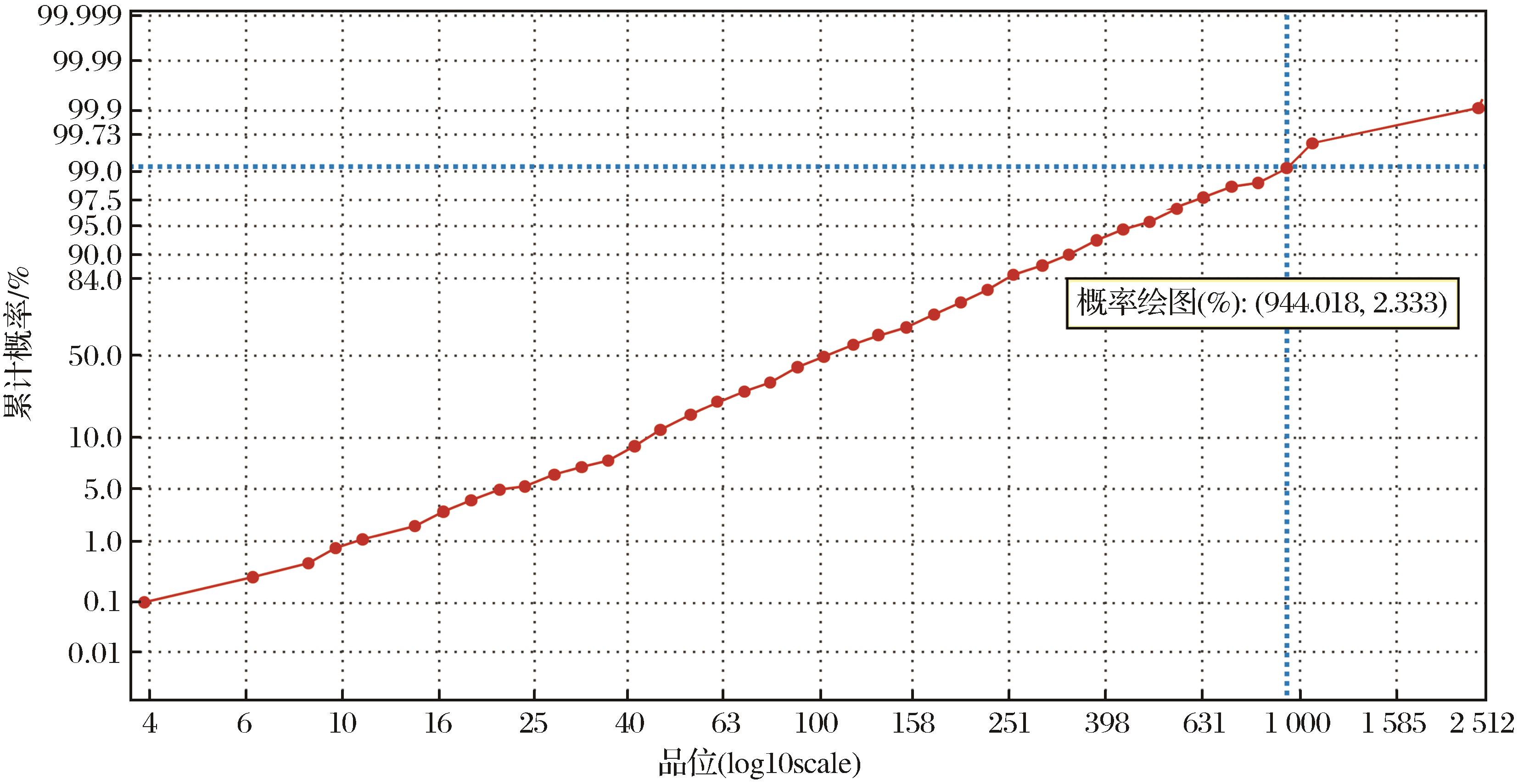

图10

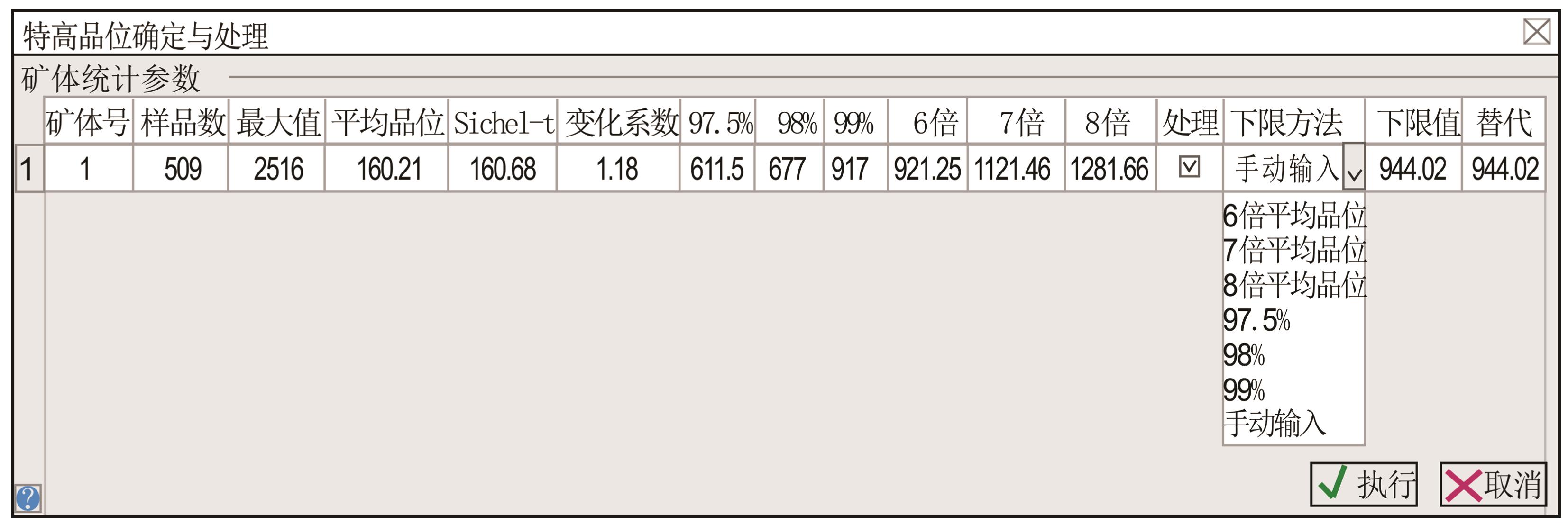

图11

表2

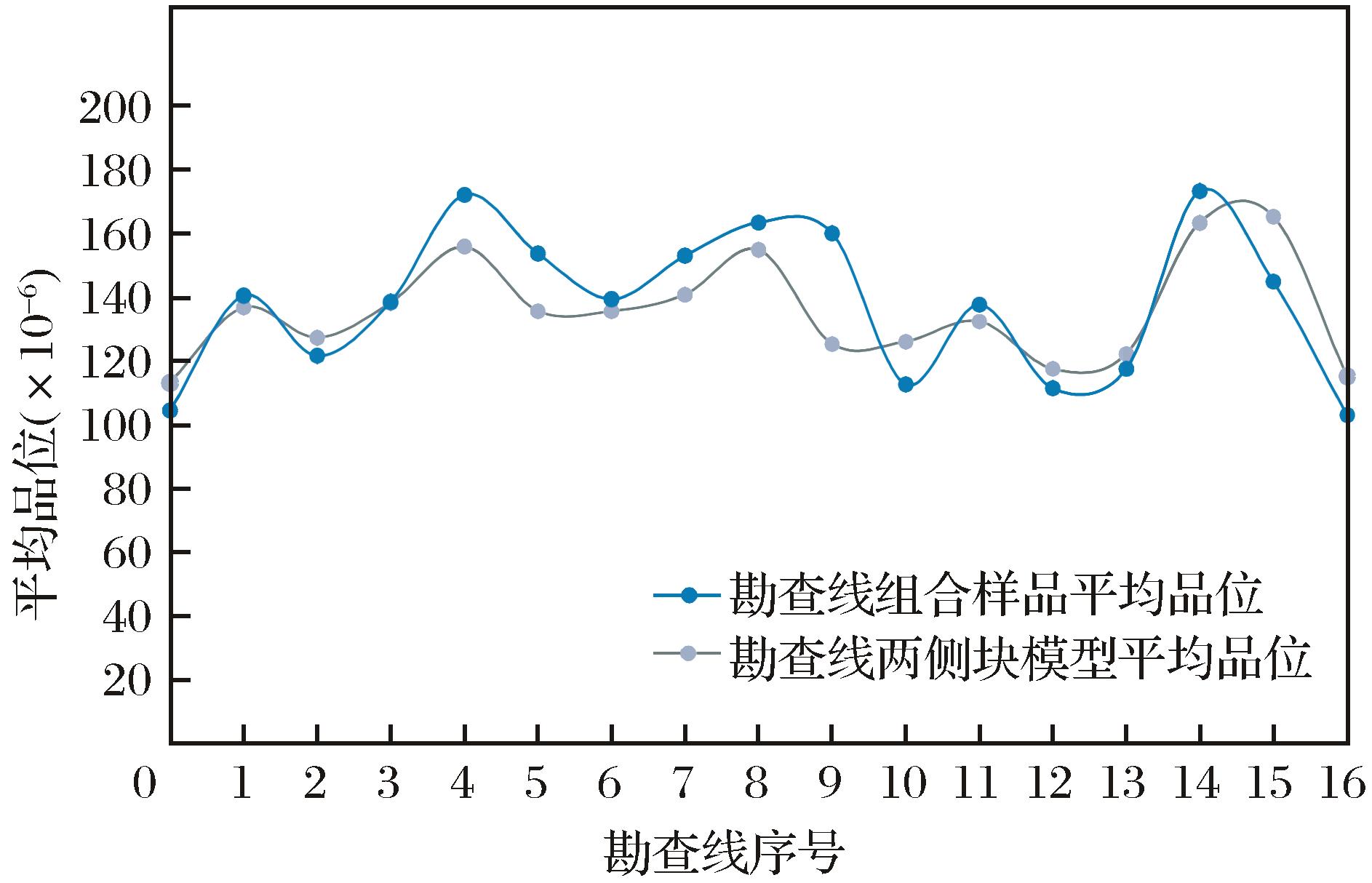

图12

表3

参考文献 0

	An Chengrui，2020.3D geological modeling of Ashele copper deposit based on Surpac［J］.Journal of Xinjiang Nonferrous Metals，（5）：7-8.
	An Le，He Hujun，Yang Xingke，al et，2018.Construction of 3D geological model and prospecting prediction of Matigou gold deposit based on Surpac［J］.Gold Science and Technology，26（5）：586-595.
	Chen Jiacai，2020.Calculation and study of the reserves of Daotuo manganese ore based on 3D geological model［J］.Western Resources，（6）：146-148.
	Dassault Systèmes GEOVIA Inc.2013.GEOVIA Surpac Introduction to Tcl/Scl［M］.Paris：Dassault Systèmes GEOVIA Inc.
	Hou Zhigang，2020.Research and application on 3D geological modeling of Erma iron deposit in Qianan，Hebei Province［J］.Modern Mining，36（6）：58-64.
	Huang P，Yang P，Chen Y Z，al et，2011.Three-dimensional model of cangshang gold mine based on surpac［J］. International Journal of Advancements in Computing Technology，3（11）：299-306.
	Huang P，Yang P，Liu J，al et，2012. Application of Surpac vision software in Arhada Lead and Zinc Mine［J］. Advances in Information Sciences and Service Sciences，4（8）：178-186.
	Kapageridis I，Albanopoulos C，2018. Resource and reserve estimation for a marble quarry using quality indicators［J］. Journal of the Southern African Institute of Mining and Metallurgy，118（1）：39-45.
	Lai Chuanlong，2016.3D Geological modeling based on Surpac vision and application of visualization technology［J］.Coal Geology of， China，28（7）：69-73.
	Li Linna，2014.Visual C++ Programming Practice Treasure［M］.Beijing：Tsinghua University Press.
	Li Xiaohui，Yuan Feng，Zhang Mingming，al et，2015.Research and implementation of section method in reserve estimation based on Surpac［J］.Journal of Jinlin University（Earth Science Edition），45（1）：156-165.
	Ministry of Natural Resources of the People’s Republic of China，2020.Regulations of mineral resources estimation.Part3： The geostatistical methods：［S］.Beijing：Geological Publishing House.
	Rossi M E，Deutsch C V，2012.Mineral Resource Estimation［M］.New York：Springer Netherlands.
	Sahoo M M，Pal B K，2017.Geological modelling of a deposit and application using Surpac［J］. Journal of Mines， Metals and Fuels，65（7）：417-422.
	Shi Wenjie，Wei Junhao，Tan Jun，al et，2019.Application of three-dimensional geological modeling technology based on Surpac software in geology teaching［J］.Education Teaching Forum，（49）：133-135.
	Song Wenming，Meng Yu，Wang Jianwei，al et，2021.Exploration report of silver polymetallic deposit in Bayanbaoge deposit，AlukeerqinBanner，Inner Mongolia Autonomous Region［R］.Chifeng：Inner Mongolia Chifeng Institute of Geology and Mineral Exploration and Development.
	Tian Xiuqi，Cao Yuan，Jiang Yongfang，al et，2017.3D geological modeling and resource estimation of graphite deposit by using Surpac［J］.Mineral Resources and Geology，31（3）：641-645.
	Wang Yi，Liu Shentai，Yang Bo，al et，2018. Report on reserve verification of copper resources in Yulong mining area，CountyJiangda，Tibet Autonomous Region ［R］.Emeishan：403 Geological Team of Sichuan Bureau of Geology and Mineral Exploration and Development.
	Yang Rui，He Zhonghua，Wang Congming，al et，2014. Report on the verification of resources and reserves of beiya iron gold deposit in Heqing County，Yunnan Province ［R］. Heqing：Yunnan Gold Mining Group Co. Ltd.
	Zhao Xiang，Lu Chenggui，Xing Liwei，al et，2014.Application of three-dimensional designing on Surpac in cement quarry［J］.Cement Technology，（1）：93-96.
	Zhu Chunmei，Li Mangen，Ren Guogang，al et，2017.Application of Surpac in constructing 3D geological models for Bayanwula uranium deposit［J］.Journal of East China University of Technology（Natural Science），40（1）：36-41.
	安诚瑞，2020.基于Surpac的阿舍勒铜矿体三维地质建模［J］.新疆有色金属，（5）：7-8.
	安乐，何虎军，杨兴科，等，2018.基于Surpac的马蹄沟金矿床三维地质模型构建及找矿预测［J］.黄金科学技术，26（5）：586-595.
	陈甲才，2020.基于三维地质模型的道坨锰矿资源储量计算研究［J］.西部资源，（6）：146-148.
	侯志刚，2020.河北迁安二马铁矿床三维地质建模研究及应用［J］.现代矿业，36（6）：58-64.
	赖传隆，2016基于Surpac的三维地质建模及可视化技术应用［J］.中国煤炭地质，28（7）：69-73.
	李琳娜，2014.VisualC++编程实战宝典［M］.北京：清华大学出版社.
	李晓晖，袁峰，张明明，等，2015.基于Surpac的垂直断面资源储量估算方法研究与实现［J］.吉林大学学报（地球科学版），45（1）：156-165.
	石文杰，魏俊浩，谭俊，等，2019.基于Surpac软件三维地质建模技术在地质教学中的应用［J］.教育教学论坛，（49）：133-135.
	宋文明，孟宇，王建伟，等，2021.内蒙古自治区阿鲁科尔沁旗巴彦包勒格矿区银多金属矿勘探报告［R］.赤峰：内蒙古赤峰地质矿产勘查开发院.
	田修启，曹渊，蒋永芳，等，2017.基于Surpac的石墨矿三维地质建模及资源量估算［J］.矿产与地质，31（3）：641-645.
	王毅，刘申态，杨波，等，2018.西藏自治区江达县玉龙矿区铜矿资源储量核实报告［R］.峨眉山：四川省地质矿产勘查开发局四O三地质队.
	杨锐，和中华，王从明，等，2014.云南省鹤庆县北衙铁金矿资源储量核实报告［R］.鹤庆：云南黄金矿业集团股份有限公司.
	赵翔，鲁承桂，邢利伟，等，2014.基于Surpac的水泥矿山三维建模与设计［J］.水泥技术，（1）：93-96.
	中华人民共和国自然资源部，2020.固体矿产资源量估算规程.第3部分：地质统计学法：［S］.北京：地质出版社.
	朱春梅，李满根，任国刚，等，2017.Surpac软件在巴彦乌拉铀矿床三维地质建模中的应用［J］.东华理工大学学报（自然科学版），40（1）：36-41.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

线串编号或实体编号范围	地质信息
102，32000，100	地层
103，32000，100	岩体
104，32000，100	脉岩
105，32000，100	正断层
106，32000，100	逆断层
109，32000，100	蚀变岩
110，32000，100	矿体

资源量类型	矿石体积 /m³	平均体积质量 /（t·m^-3）	矿石量 /10⁴t	平均品位 /（×10^-6）	金属量 /t
合计	561016	2.91	163.3	149.21	243
探明资源量	318375	2.91	92.6	146.80	136
控制资源量	134203	2.91	39.1	154.78	60
推断资源量	108438	2.91	31.6	149.42	47

资源量类型	面积/m²	平均厚度/m	体积/m³	平均体积质量/（t·m^-3）	矿石量/（10⁴t）	平均品位/（×10^-6）	金属量/t
合计	116 914	5.11	597 800	2.91	174.7	150.00	261
探明资源量	47 924	6.87	329 069	2.91	96.5	152.63	146
控制资源量	33 600	3.98	133 792	2.91	38.9	155.73	61
推断资源量	35 390	3.81	134 939	2.91	39.3	137.71	54
