东昆仑驼路沟矿床中钴成矿过程的矿物学示踪
王智琳,张凯,许德如,邹少浩,王宇非

Mineralogical Fingerprints of Co Metallogenesis in the Tuolugou Deposit,East Kunlun Orogen
Zhilin WANG,Kai ZHANG,Deru XU,Shaohao ZOU,Yufei WANG

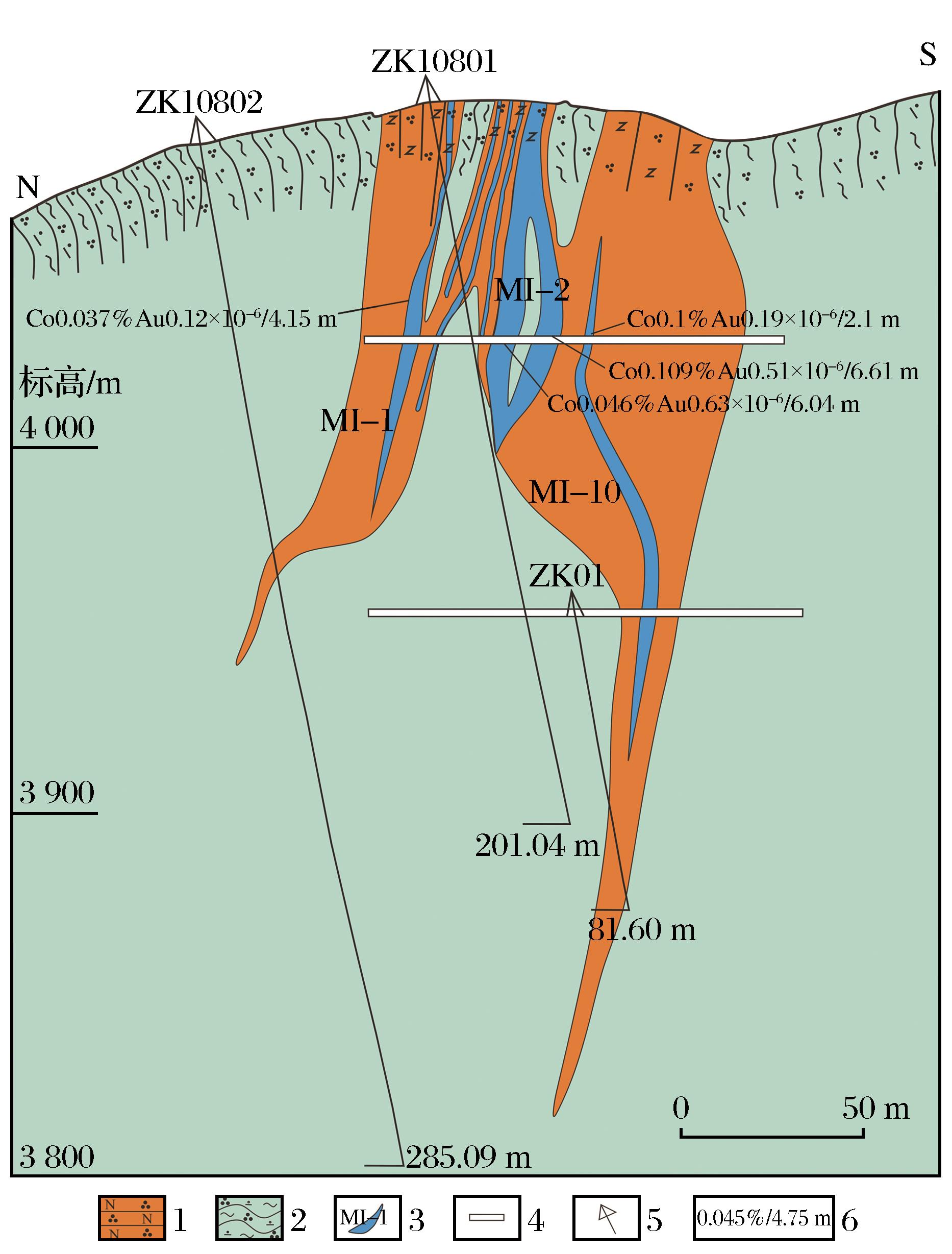

图3 驼路沟矿床108勘探线剖面图(修改自奎明娟等,2019
1.石英钠长岩;2.绿泥石绢云母石英片岩;3.矿体及编号;4.平硐;5.钻孔;6.矿种(矿体)的平均品位/真厚度
Fig.3 Simplified section of No.108 exploration line of the Tuolugou deposit(modified after Kui et al.,2019
