湖南安化大溶溪白钨矿床侧伏规律研究及意义 |
余应龙,周岳强,董玉宁,时承华 |
Study on the Lateral Trending Regularity and Its Significance of Darongxi Scheelite Deposit in Anhua,Hunan Province |
Yinglong YU,Yueqiang ZHOU,Yuning DONG,Chenghua SHI |

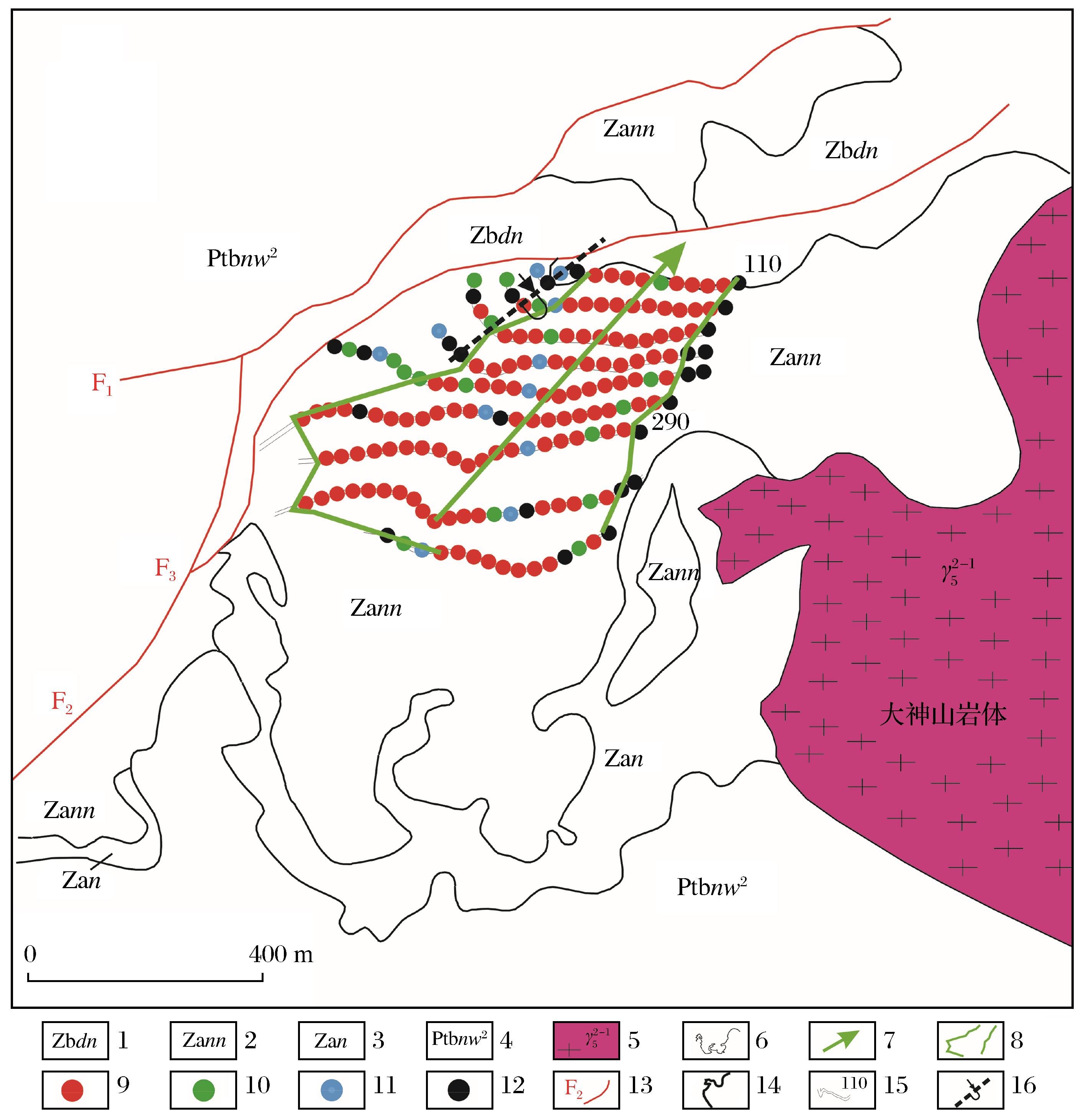

图4 大溶溪白钨矿床矿体侧伏规律 1.灯影组硅质岩;2.南沱冰碛岩组冰碛砾泥岩;3.南沱砂岩组砂岩;4.五强溪组板岩;5.大神山花岗岩;6.地层界线;7.矿区侧伏线;8.矿区富集矿体边界线;9.取样点(WO3品位≥0.4%);10.取样点(0.3%≤WO3品位<0.4%);11.取样点(0.2%≤WO3品位<0.3%);12.取样点(WO3品位<0.2%);13.矿区沿脉巷道及中段编号;14.大神山岩体西边界线;15.断层及编号;16.倒转向斜轴 |
Fig.4 Lateral trending regularity of orebodies in the Darongxi scheelite deposit |
